About FluidSIM

FluidSIM is an advanced software that allows users to create, simulate, teach, and study the operation of electropneumatic, electrohydraulic, and digital circuits. The software features a drag-and-drop interface, making it easy to create circuits intuitively by placing the items in the circuit diagram as desired. With its simple and effective features, even novice users can benefit from it.

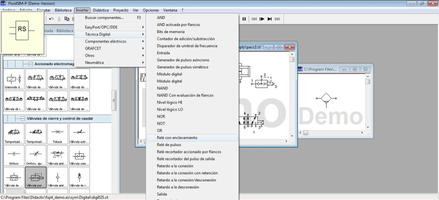

FluidSIM includes an intuitive circuit diagram editor, complete with detailed descriptions of all components, sectional view animations, component photos, and video sequences. As a result, it is perfectly suited for use in lessons and for preparing coursework. It can also be used as a self-study program for individuals who want to acquire a more in-depth understanding of the workings of electropneumatic, electrohydraulic, and digital circuits.
The software also features a new simulation core that is capable of precise mathematical procedures and complex physical models without slowing down the simulation process. This means that FluidSIM delivers precise simulation results at amazing speeds, making it ideal for professionals who require a quick and accurate way of simulating circuits.
Moreover, FluidSIM offers a broad range of communication features for interfacing with other applications via DDE and OPC. It also supports Festo EasyPorts, enabling users to link virtual circuits to real hardware in a seamless way. In this way, FluidSIM provides a versatile set of tools for any application requiring circuit simulation.
Overall, FluidSIM is an advanced and feature-rich software that provides precise and fast simulation of electropneumatic, electrohydraulic, and digital circuits. While it may not be suitable for everyone, it is an essential tool for experts who require fast and accurate simulation results. Whether you are a student, teacher, researcher, or technician, FluidSIM is an excellent resource for those seeking to gain a deeper understanding of how circuits work. With its powerful yet user-friendly features, FluidSIM remains an indispensable software for anyone working in the field of circuit simulation.

Reviewed by Arnold A. Howe

Information

Updated onSep 15, 2023

Old Versions

FluidSIM6.1c
Sep 15, 2023
exe32 bit
Download
FluidSIM6.1b
Jun 16, 2023
exe32 bit
Download
All Versions
FluidSIM icon
FluidSIM for PC
Are you into Electropneumatic?
6.1c
Free Downloadfor Windows

How to download and Install FluidSIM on Windows PC

  • Click on the Download button to start downloading FluidSIM for Windows.
  • Open the .exe installation file in the Downloads folder and double click it.
  • Follow the instructions in the pop-up window to install FluidSIM on Windows PC.
  • Now you can open and run FluidSIM on Windows PC.
